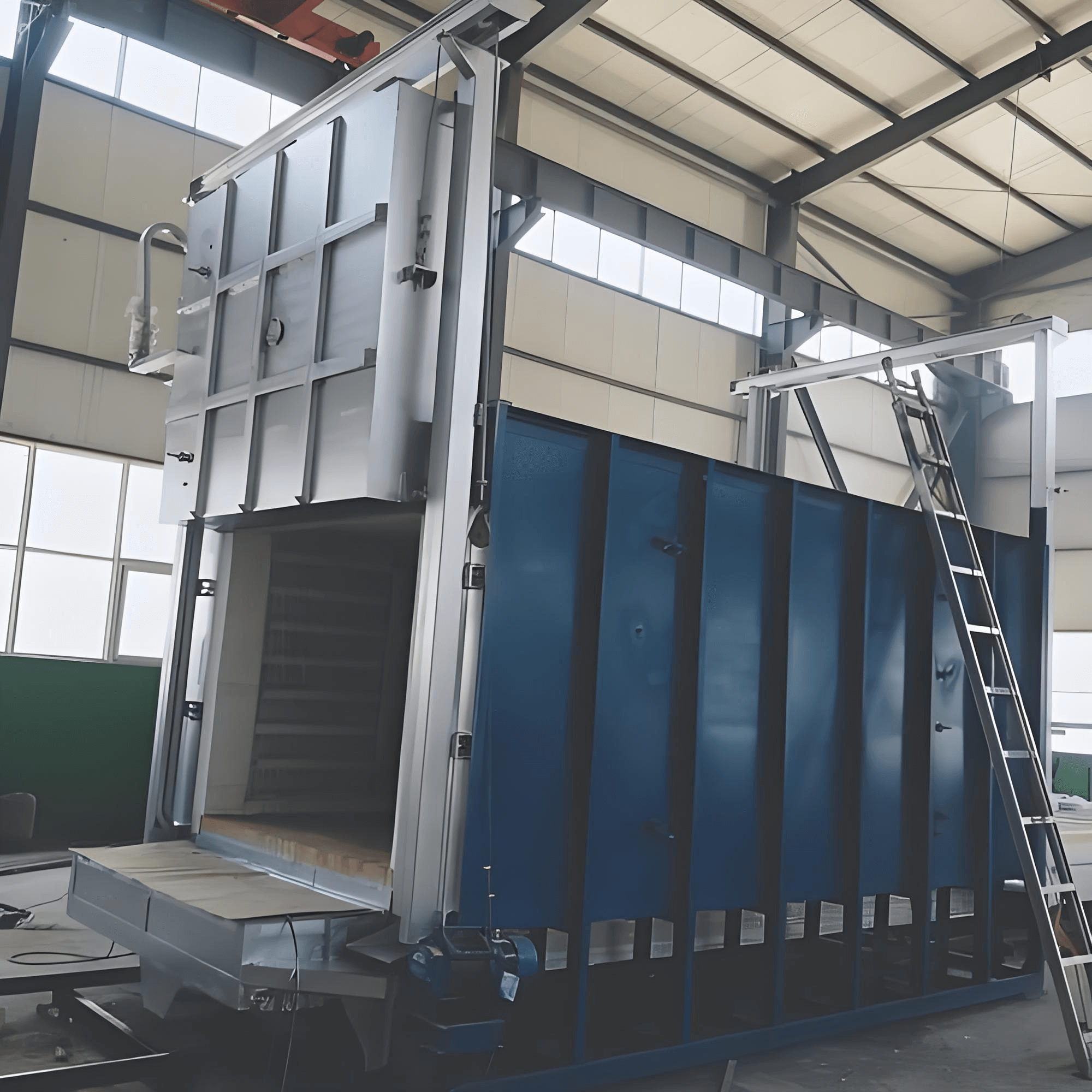

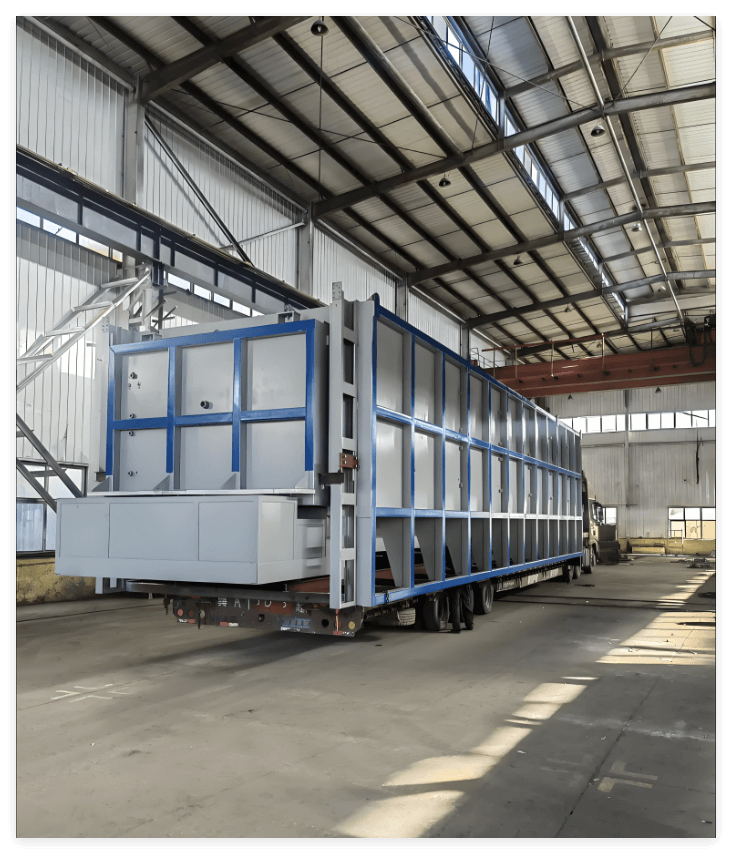

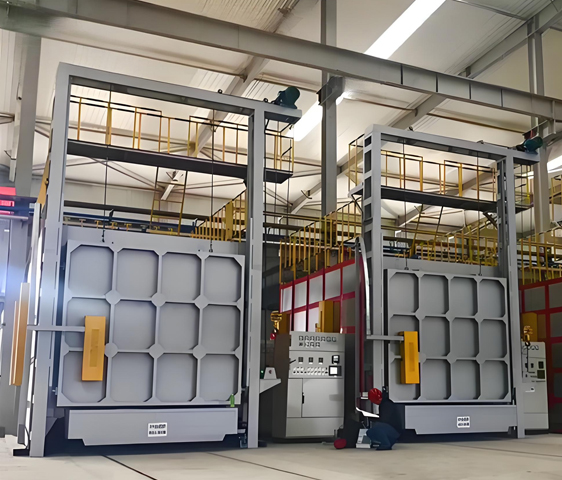

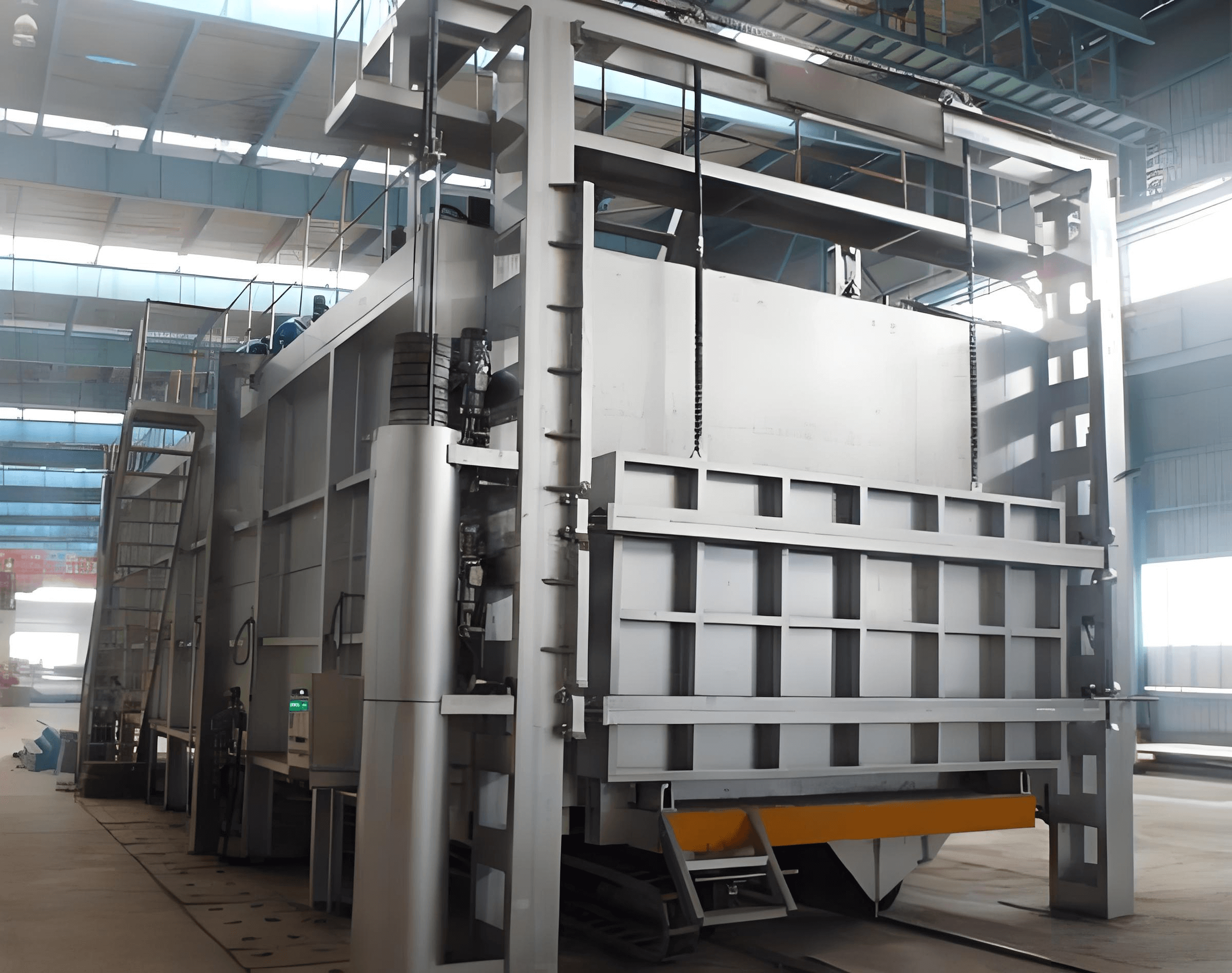

Trolley Type Resistance Furnace

The furnace is lined entirely with high-grade ceramic fiber, offering excellent thermal insulation. This design reduces energy consumption by up to 60% compared to traditional brick-lined furnaces, while maintaining high thermal efficiency and faster heating cycles.

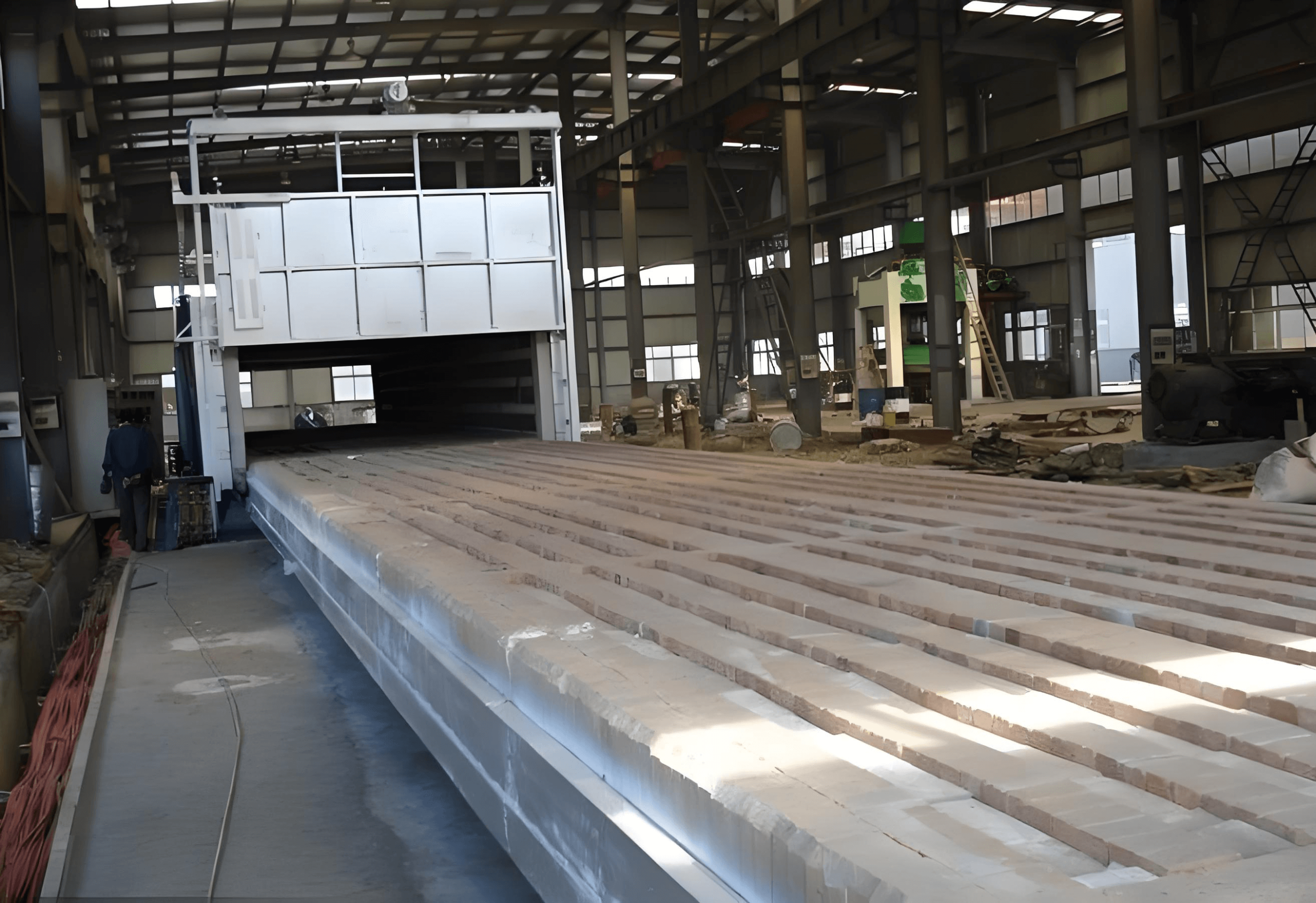

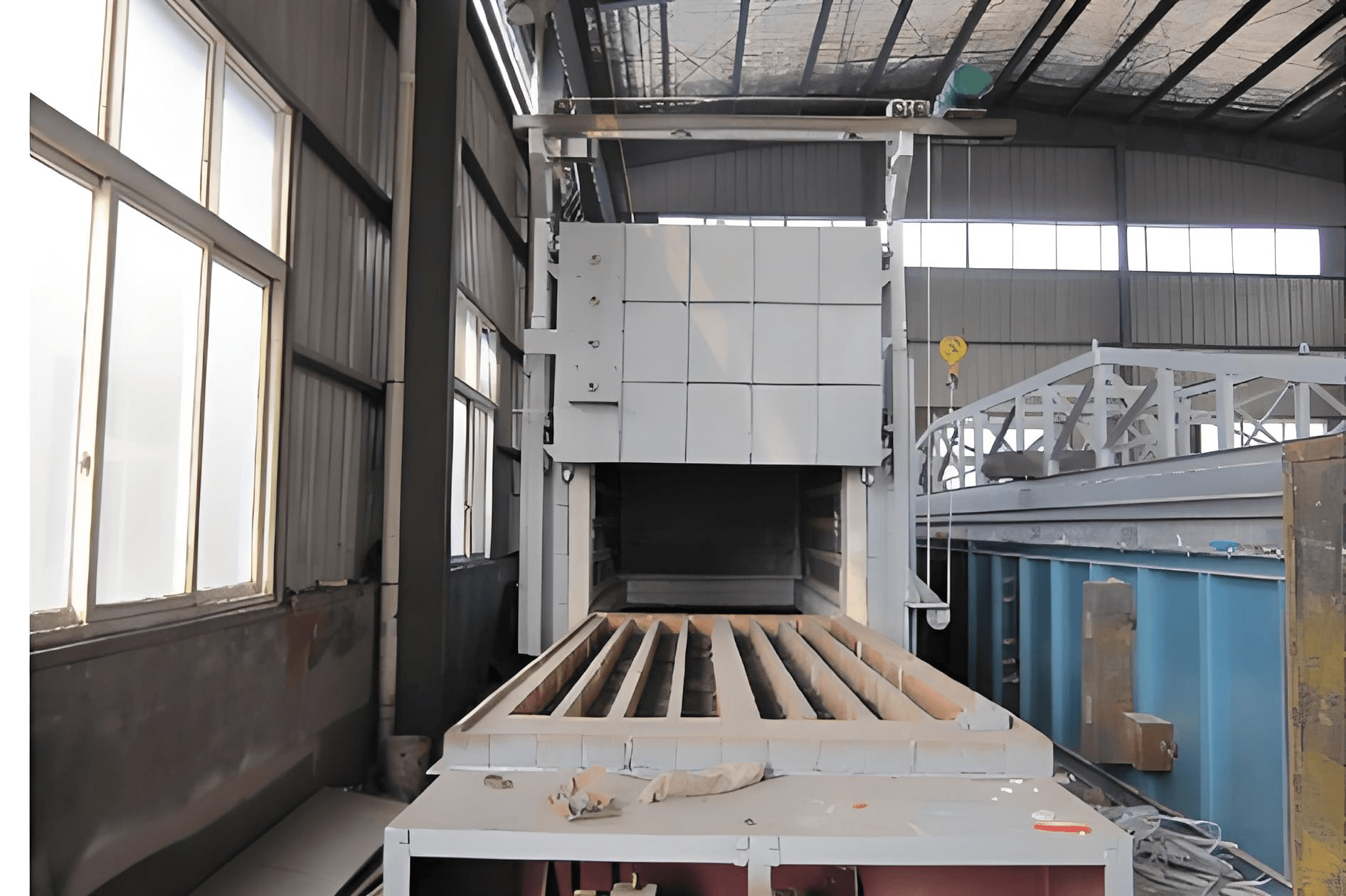

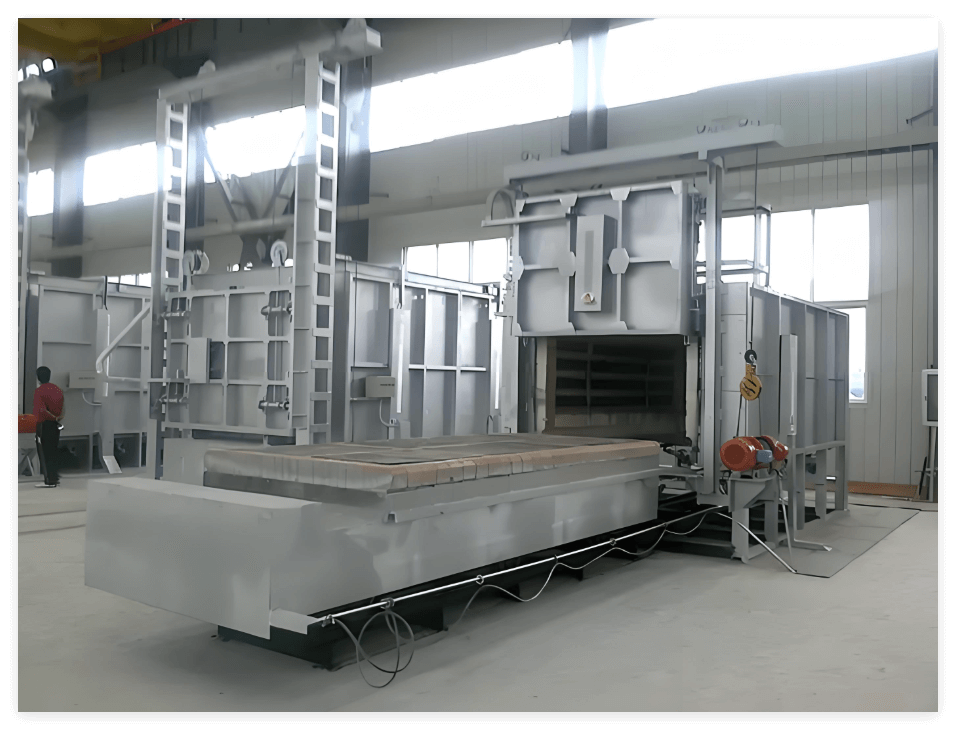

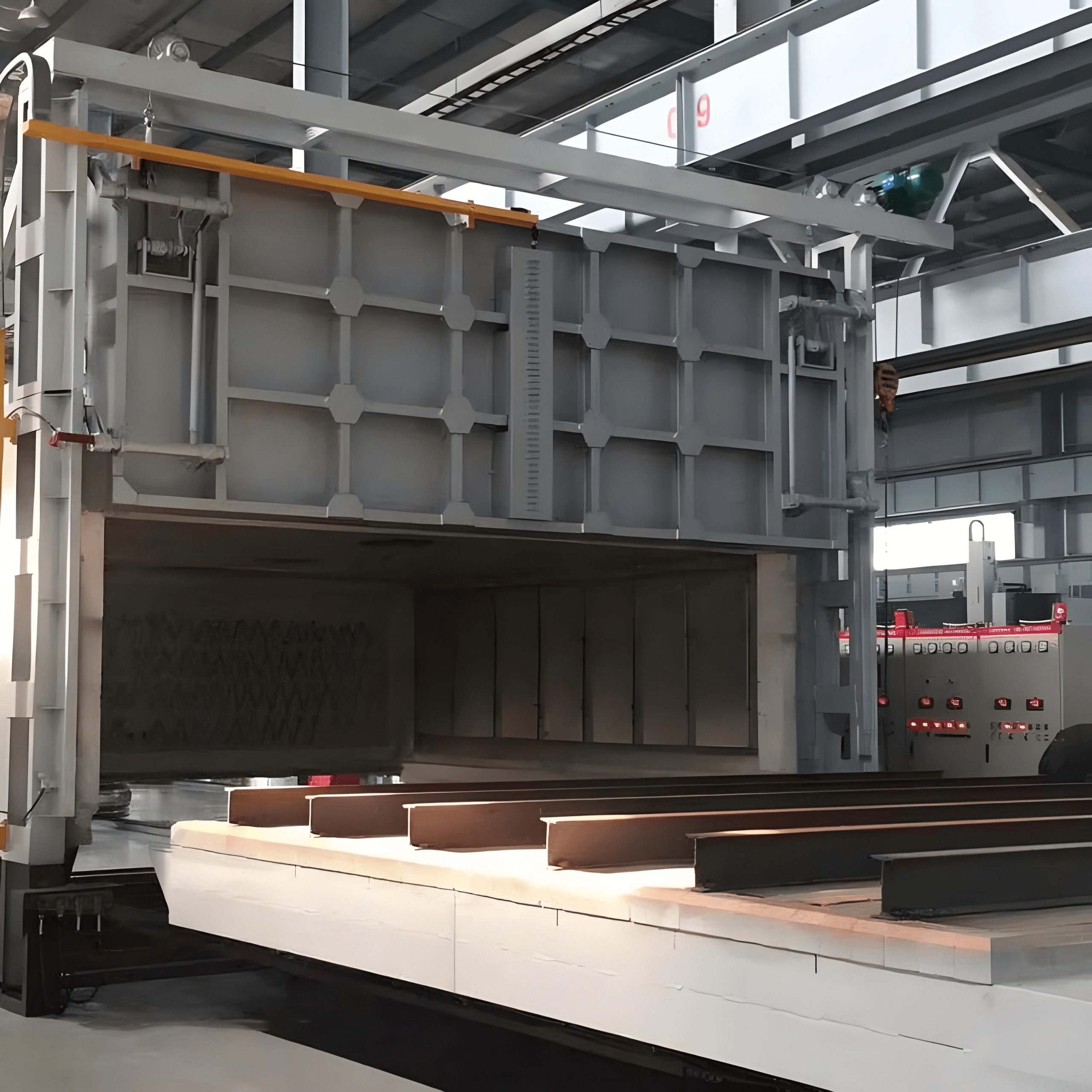

The built-in rail-guided trolley allows easy loading and unloading of large components such as steel castings, rolls, balls, hammer heads, and pressure vessel segments. The trolley can be operated by motor or reducer system, and features robust construction to support loads of up to 3–12 tons.

High-resistance alloy heating elements are mounted on the furnace walls, door, and floor. The multi-sided heating layout ensures uniform temperature distribution, minimizing thermal stress and improving product consistency.

Equipped with intelligent temperature control systems using PID + SCR modules and Shimaden (Japan) instruments, the furnace provides ±2 °C accuracy and excellent temperature uniformity across multiple zones.

Fully automated control for trolley movement and furnace doors, complete with interlocks and emergency shutoffs. The design ensures that heating stops during loading/unloading, reducing risks and improving operator safety.

All-fiber insulation significantly reduces heat loss and operational costs

Ideal for processing large, heavy, or batch components

Precise control systems ensure stable and repeatable heat treatment quality

Designed for installation on standard factory floors, no deep foundation required

Automated doors, trolley systems, and built-in protections enhance safety and usability
