Reheating Furnace of Rolling Mill

Reheating Furnace for Rolling Mills

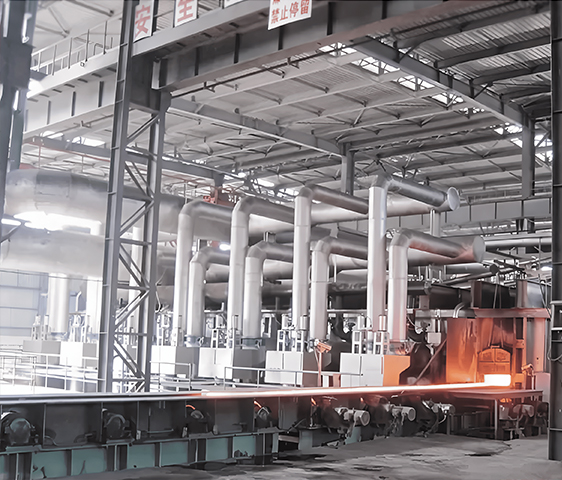

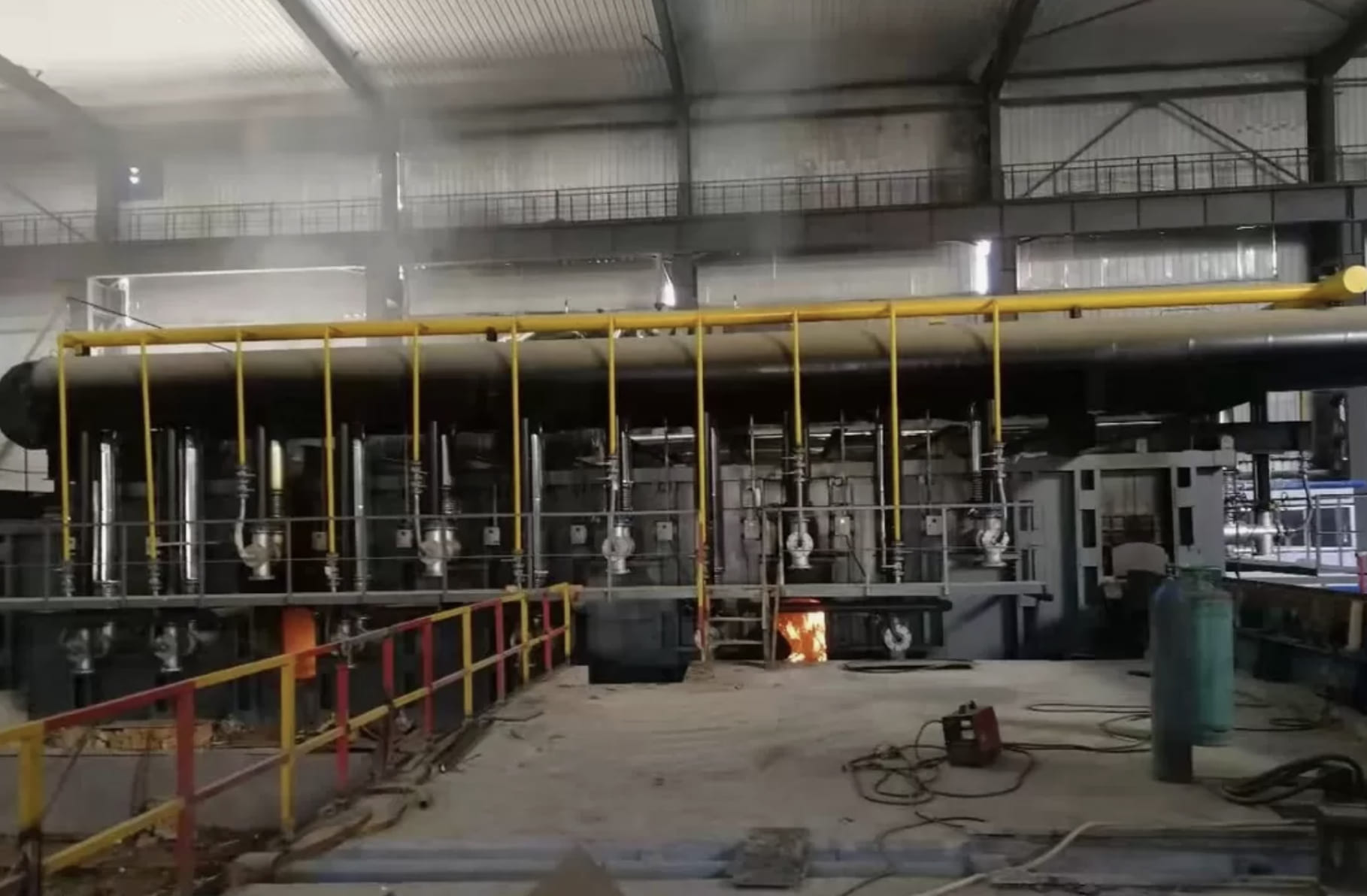

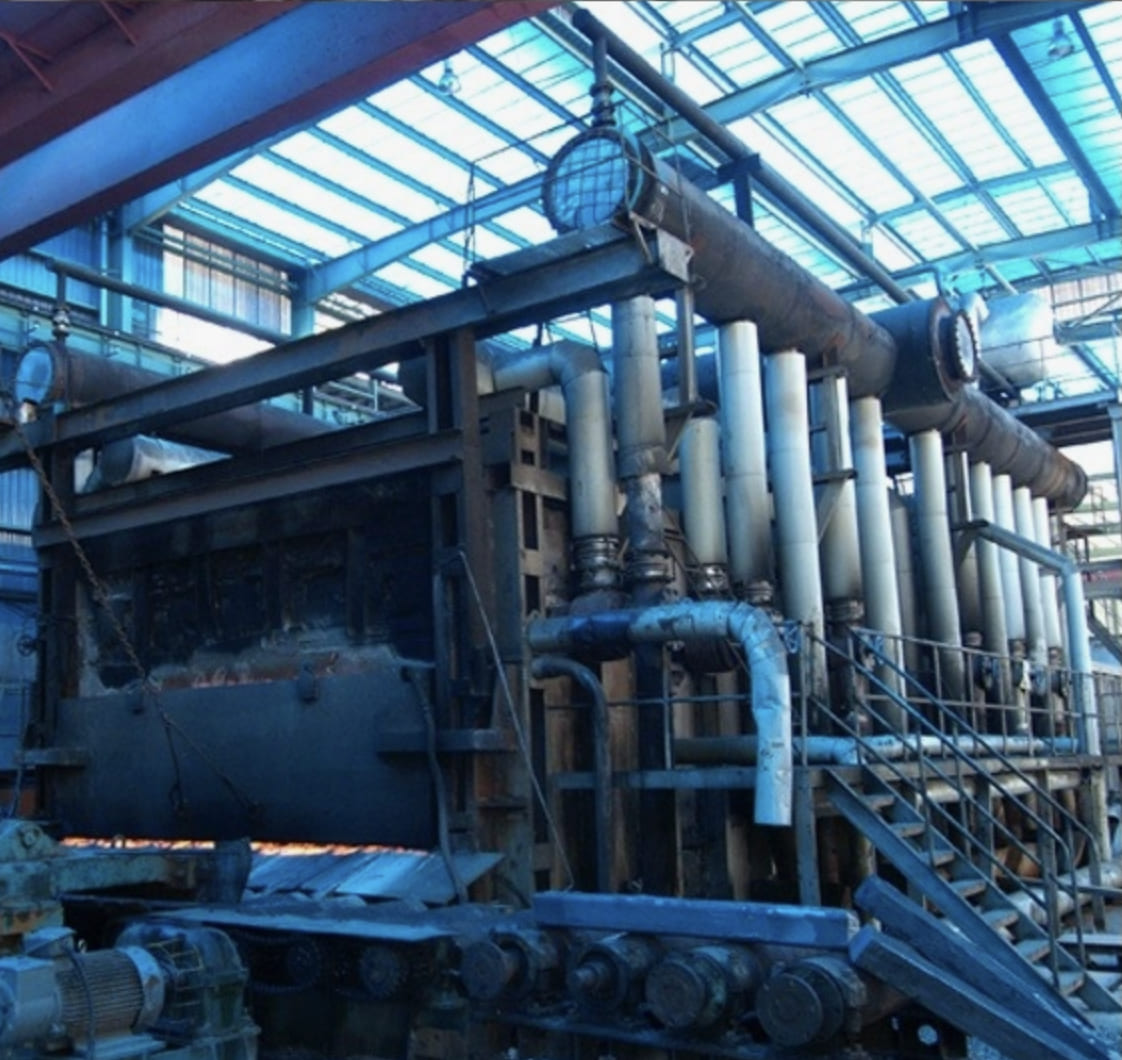

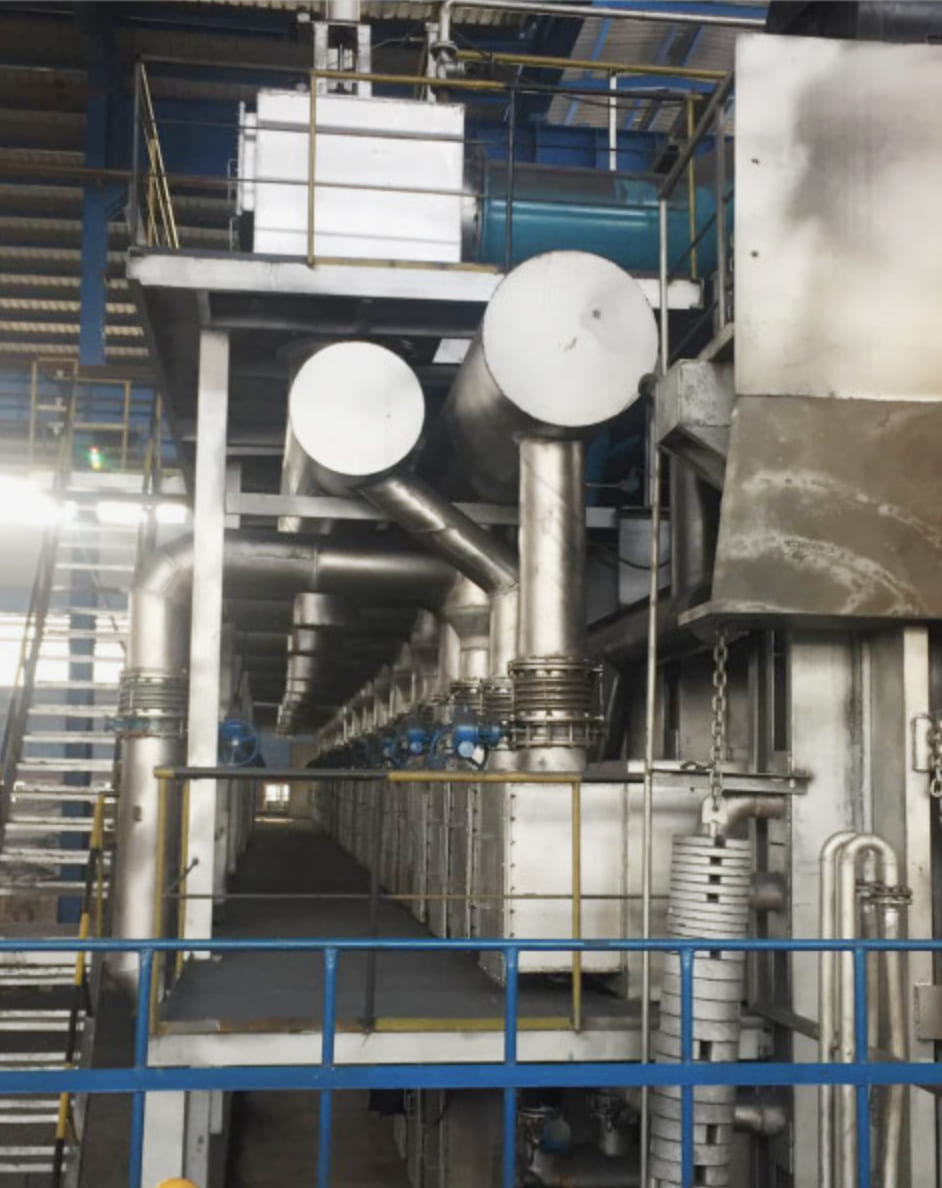

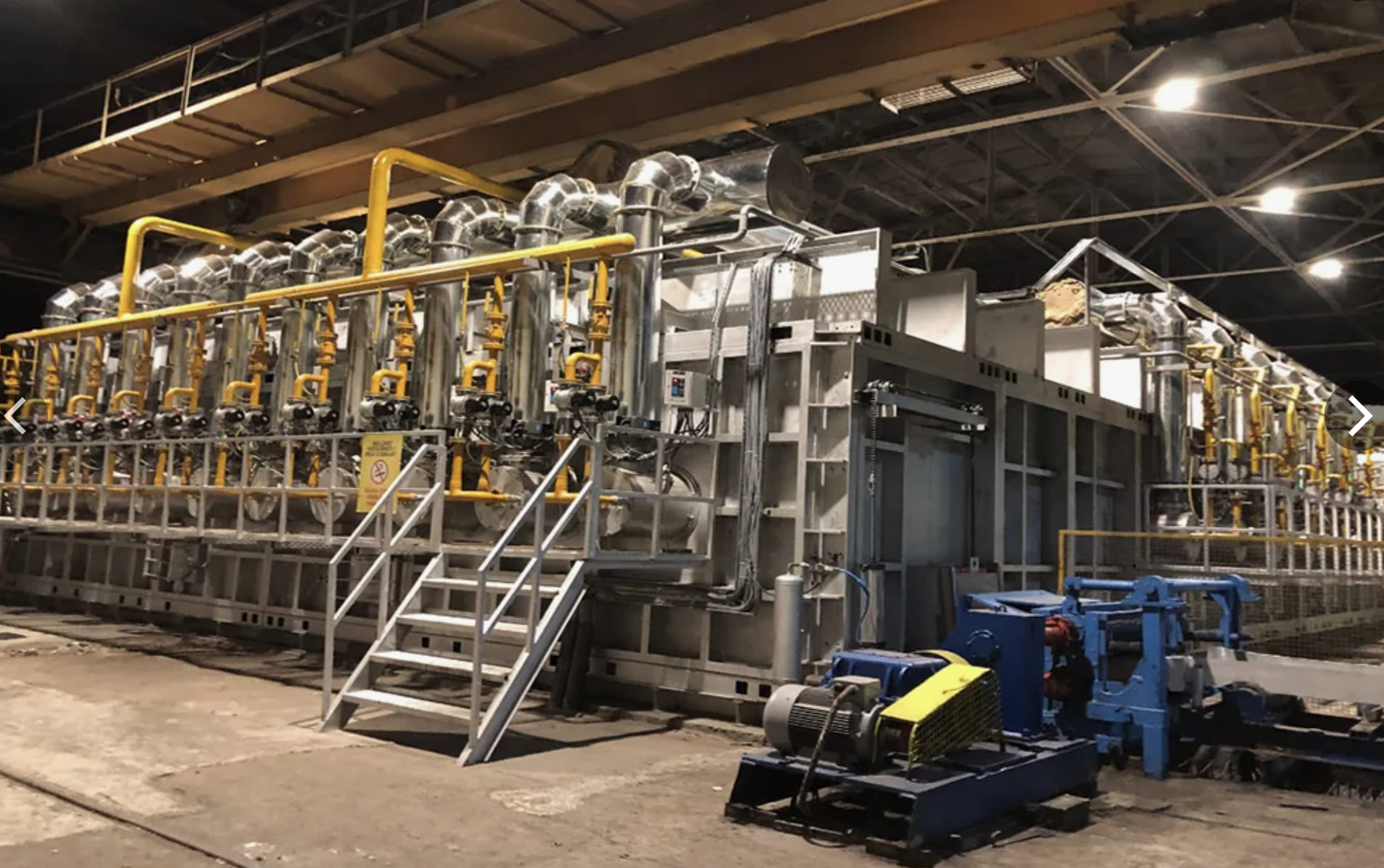

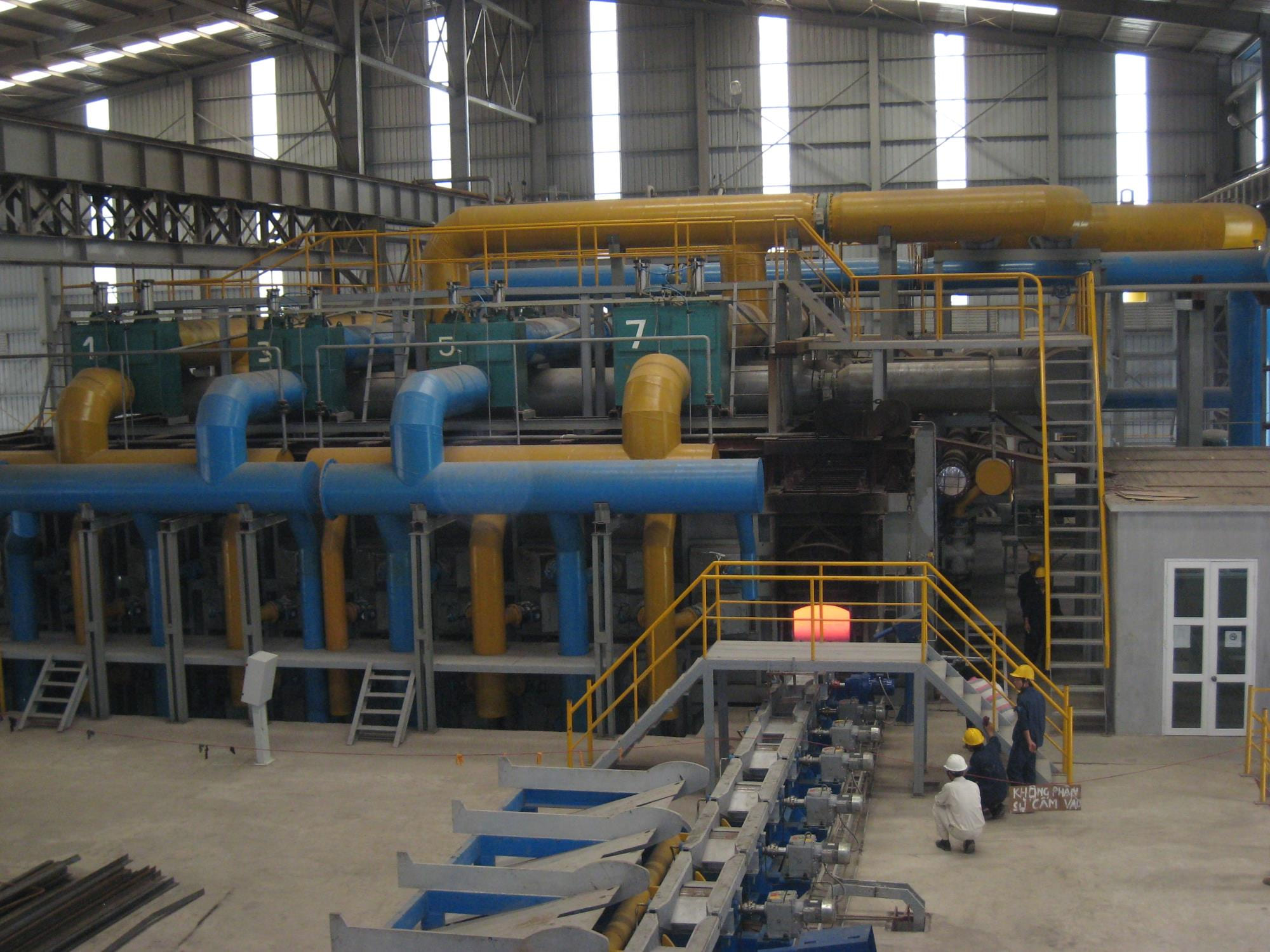

A Reheating Furnace is an essential thermal processing equipment used in the steel rolling industry to heat billets, slabs, or blooms to the rolling temperature, typically between 1000°C to 1300°C. It ensures optimal metal plasticity and reduces rolling resistance, thereby improving product quality and rolling efficiency. Our reheating furnaces are widely applied in bar mills, wire rod mills, section steel production lines, and plate rolling lines. We offer push-type, walking beam, and walking hearth furnace configurations tailored to customer-specific production needs.
Get In Touch
  • Free combination on demand to meet various working conditions

Application Industries.

  • Rebar and wire rod production lines

  • Structural steel rolling mills

  • Medium and heavy plate mills

  • Seamless steel pipe heating

  • Special alloy steel forging

Tech Specs

Parameter Specification Range
Furnace Type Walking Beam / Push-type / Walking Hearth
Heating Temperature 1000°C – 1300°C
Production Capacity 10 – 200 tons/hour
Fuel Types Natural Gas, LPG, COG, Heavy Oil
Furnace Length 10 – 60 meters (customizable)
Temperature Control ±5–10°C precision
Billet Sizes Square, Round, Slabs, Custom Profiles
Discharge Method Side Discharge / End Discharge / Bottom Discharge
Combustion Control Manual / Semi-auto / Fully Automatic
Burners High-Speed, Low-NOx, Regenerative Optional
Oxidation Loss ≤1.5% (with optimized design)
Control System Siemens/ABB PLC + Touch Screen Interface
Lining Materials High-Alumina Brick / Ceramic Fiber / Insulation Board

Customization Options.

  • We offer complete customization based on:

  • Production capacity

  • Billet dimensions and feed method

  • Fuel availability and energy-saving goals

  • Automation level and control system integration

  • OEM/ODM services are available. Engineering drawings and process simulations can be provided before production.

Features.

  • High Thermal Efficiency
    • Equipped with high-performance burners; supports multiple fuel options: natural gas, coke oven gas, LPG, or heavy oil.
    • Optional regenerative combustion system to utilize waste heat and reduce energy consumption.
  • Precise Temperature Control

    1. Multi-zone control design ensures uniform billet heating.
    2. Integrated temperature sensors and PLC automation for real-time monitoring and regulation.

  • Advanced Structure Design

    1. Durable furnace lining using high-alumina bricks and lightweight insulation materials.
    2. Stable billet movement with pushers or walking beams to prevent billet deformation and overheating.

  • High Degree of Automation

    1. Supports PLC/HMI/DCS/MES integration for automatic billet feeding, heating, and discharge.
    2. Intelligent alarms, diagnostics, and data logging systems.

  • Customizable Solutions

    1. Fully tailored to billet size, production rate, fuel type, and plant layout.

Technical Support & After-Sales Service.

  • Pre-sale Engineering Consultation

    Site analysis, process optimization advice

  • Installation & Commissioning

    On-site guidance by senior engineers

  • Training

    Operation & maintenance training for client staff

  • After-Sales Service

    24/7 technical support, spare parts supply, system upgrades

  • Global Support

    Remote diagnostics and international service team coverage
