Preheats combustion air up to 1,000 °C (at furnace temperatures of 1,200 °C).
Optional flameless combustion with NOx emissions < 70 ppm (@ 3% O₂).
Standard models from 500 kW to 6 MW, custom solutions up to 15 MW.
Standard 4:1; customizable for broader control needs.
Works with natural gas, LPG, coke oven gas, light oil, and hydrogen-rich gases.
Filled with high-alumina ceramic balls or structured honeycomb for easy maintenance.
Includes a Burner Management System (BMS), UV flame scanner, and complies with NFPA 86 / EN 746-2 safety codes.

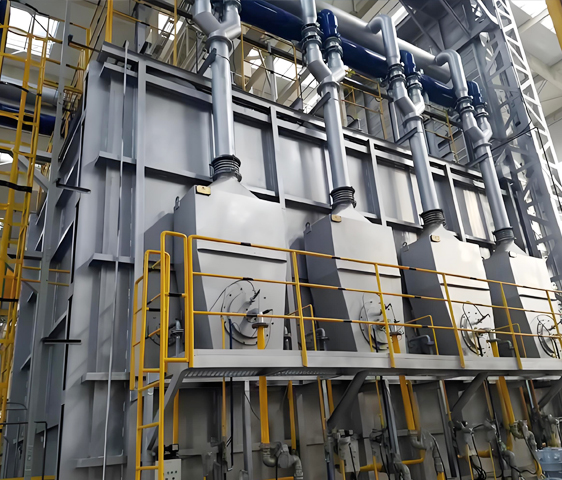

Billet reheating furnaces and forging furnaces in the steel industry
Aluminum and copper melting furnaces
Heat treatment furnaces and roller hearth furnaces
High-temperature kilns in glass, ceramic, and chemical production

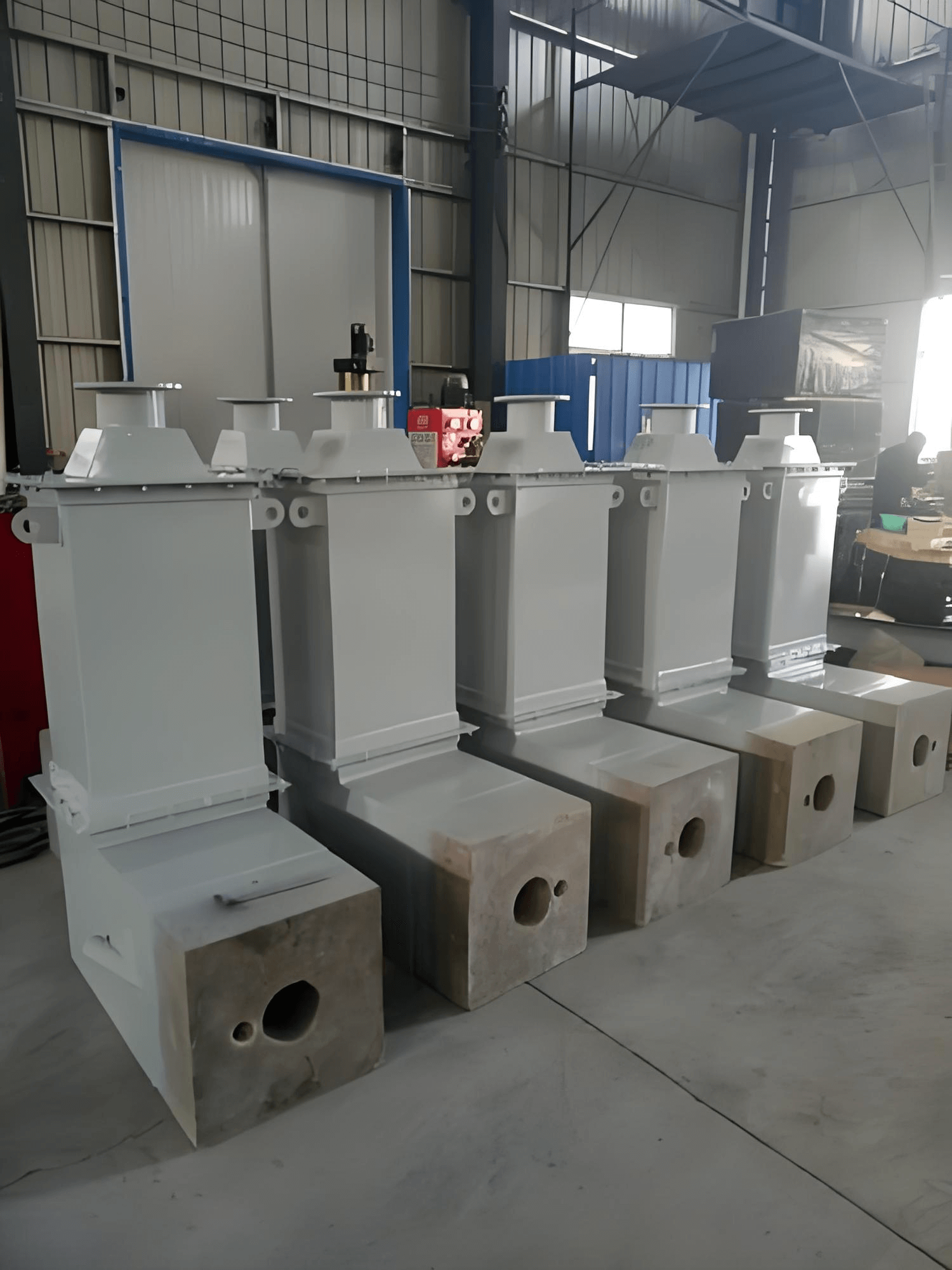

Brick-lined burner inlets range from 510 mm to 860 mm depending on burner size.
Can be mounted laterally or remotely above the furnace, suiting various space constraints.
Fuel pressure ≥ 100 mbar; combustion air ≥ 60 mbar; an induced draft fan is needed to maintain negative pressure.
K-type thermocouples are recommended at regenerator exits for precise switching control.
